Kegellager Timken 487TD, Binnendiameter: 72.073 mm | Breedte: 67.539 mm
Tapered Roller Double Row Cone
Zie technische informatieReferenties
Timken:487TD
Rubix:03323283
Fabrikant:100060280
EAN:0053893043173
Technische samenvatting
| Binnendiameter | 72,073 mm |
|---|---|
| Breedte | 67,539 mm |
| Type lagerspeling | cn |

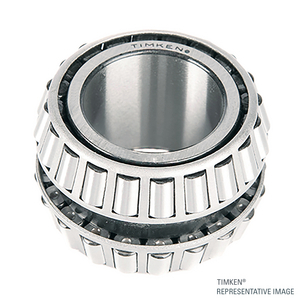

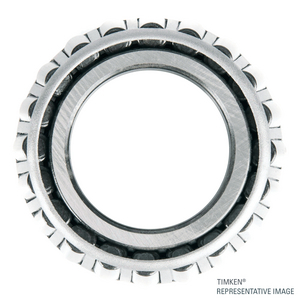

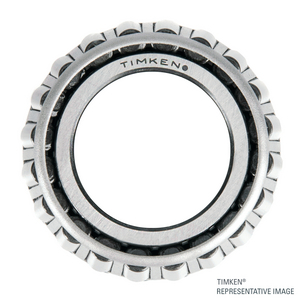

Productdetails : TIMKEN 487 TD CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 67,539x92,812x92,812 mm |
| Logistiek gewicht | 1788 g |
| Afmeting verpakking (D x B x H) | 82,55x114,3x114,3 mm |
| Gewicht verpakking | 1788,1 g |
| Binnendiameter | 72,073 mm |
| Breedte | 67,539 mm |
| Type lagerspeling | cn |
| Gewicht | 3 kg |
| Serie | 475 |
| Totale breedte lager | 67,539 mm |
| Statische basisbelasting, radiaal - C0r | 186000 N |
| Dynamische basisbelasting, radiaal - Cr | 236000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 800,16 excl. BTW
/ stuk
€ 968,19 incl. BTW
- Levering doorgaans binnen 9 dagen
