Kegellager Timken HM237546D, Buitendiameter: 194 mm | Binnendiameter: 177.8 mm | Breedte: 123.825 mm
Kegellager
Zie technische informatieReferenties
Timken:HM237546D
Rubix:03326897
EAN:0053893537252
Technische samenvatting
| Binnendiameter | 177,8 mm |
|---|---|
| Buitendiameter | 194 mm |
| Breedte | 123,825 mm |

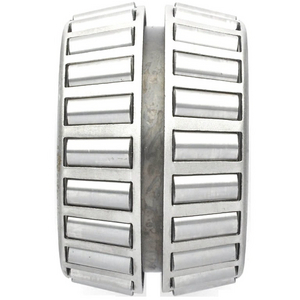

Productdetails : TIMKEN HM 237546 D CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Timken HM237546D is een dubbele kegelrol lagerkegel voor zware radiale en axiale belastingen. Boring 177,800 mm, breedte 123,825 mm en C0=1.240.000 N.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 123,952x225,552x225,552 mm |
| Logistiek gewicht | 21127 g |
| Afmeting verpakking (D x B x H) | 292,1x152,4x292,1 mm |
| Binnendiameter | 177,8 mm |
| Buitendiameter | 194 mm |
| Breedte | 123,825 mm |
| Type lagerspeling | cn |
| Serie | hm237500 |
| Materiaal | gestempeld staal |
| Koker | staal |
| Totale breedte lager | 123,825 mm |
| Statische basisbelasting, radiaal - C0r | 1240000 N |
| Dynamische basisbelasting, radiaal - Cr | 824000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 14.711,35 excl. BTW
/ stuk
€ 17.800,73 incl. BTW
- Levering doorgaans binnen 9 dagen
