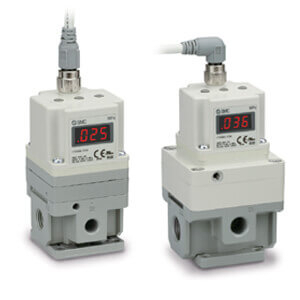

SMC ELEKTRO-PNEUMATISCHE REGELAAR ITV2050-01F2BL
Speciale Reduceerventielen ITV
Zie technische informatieZie documentenReferenties
SMC:ITV2050-01F2BL
Rubix:05280114
Documenten
Productdetails : SMC ELEKTRO-PNEUMATISCHE REGELAAR ITV2050-01F2BL
Electro-/Pneumatisch Reduceerventiel
•Pressure range: 0.005 to 0.9 MPa
•Maximum flow rate: 4000 l/min (ANR)
•Port sizes: 1/8, 1/4, 3/8, 1/2
•Applicable fieldbus protocols: IO-Link, CC-Link, DeviceNet™, PROFIBUS, RS-232C.
Model: 20 (1500 L/min)
Pressure Range: 5 (0.005~0.9MPa)
Power Voltage: 0 (24VDC)
Input Signal: 0 (Current Style 4~20mADC
Requires Sourcing Type PLC Input Module):
Monitor Output: 1 (Analogue Output 1~5VDC)
Thread: F (G[PF])
Port Size: 2 (1/4 [2000,3000])
Accessory: B (Flat Bracket)
Cable Connector: L (Right Angle Style 3m)
Pressure Display Unit: MPa
Options: None
•Maximum flow rate: 4000 l/min (ANR)
•Port sizes: 1/8, 1/4, 3/8, 1/2
•Applicable fieldbus protocols: IO-Link, CC-Link, DeviceNet™, PROFIBUS, RS-232C.
Model: 20 (1500 L/min)
Pressure Range: 5 (0.005~0.9MPa)
Power Voltage: 0 (24VDC)
Input Signal: 0 (Current Style 4~20mADC
Requires Sourcing Type PLC Input Module):
Monitor Output: 1 (Analogue Output 1~5VDC)
Thread: F (G[PF])
Port Size: 2 (1/4 [2000,3000])
Accessory: B (Flat Bracket)
Cable Connector: L (Right Angle Style 3m)
Pressure Display Unit: MPa
Options: None
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Type | itv |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 463,50 excl. BTW
/ stuk
€ 560,84 incl. BTW
- Levering doorgaans binnen 9 dagen
