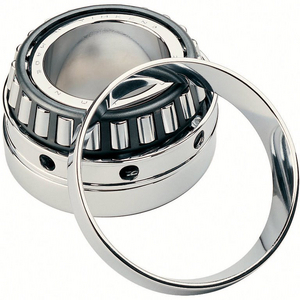

Kegellager Timken JM738249-90N02, Buitendiameter: 260.096 mm | Binnendiameter: 189.992 mm | Breedte: 102.108 mm
Tapered Roller Bearing 2TS Assembly
Zie technische informatieReferenties
Timken:JM738249-90N02
Rubix:03327608
EAN:0053893086880
Technische samenvatting
| Binnendiameter | 189,992 mm |
|---|---|
| Buitendiameter | 260,096 mm |
| Breedte | 102,108 mm |
Productdetails : TIMKEN JM 738249-90N02 KEGELLAGER ASSY
2TS assemblies are comprised of two single-row bearings with an inner and outer ring spacer. In some applications, a shoulder in the bearing housing replaces the outer ring spacer.
Sterke punten
Steel spacers are used to create Bench End Play (BEP) or Preload (BPL) in the bearing assembly. Available with or without spacers. Spacers preset during manufacture.
Toepassingen
Gear reduction units; Industrial machines
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 102,108x260,096x260,096 mm |
| Logistiek gewicht | 14244 g |
| Afmeting verpakking (D x B x H) | 260,35x114,3x260,35 mm |
| Binnendiameter | 189,992 mm |
| Buitendiameter | 260,096 mm |
| Breedte | 102,108 mm |
| Gewicht | 14,41 kg |
| Serie | 4dd (iso 355) |
| Totale breedte lager | 102,108 mm |
| Norm | iso 355 |
| Statische basisbelasting, radiaal - C0r | 1610256 N |
| Dynamische basisbelasting, radiaal - Cr | 184000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 3.548,37 excl. BTW
/ stuk
€ 4.293,53 incl. BTW
- Levering doorgaans binnen 9 dagen
