Kegellager Timken 42346, Binnendiameter: 87.96 mm | Breedte: 28.971 mm
Tapered Roller Bearing Cone
Zie technische informatieReferenties
Timken:42346
Rubix:03322704
Fabrikant:100041264
EAN:0053893283661
Technische samenvatting
| Binnendiameter | 87,96 mm |
|---|---|
| Breedte | 28,971 mm |
| Type lagerspeling | cn |

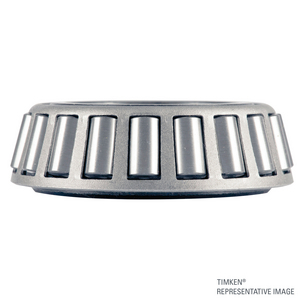

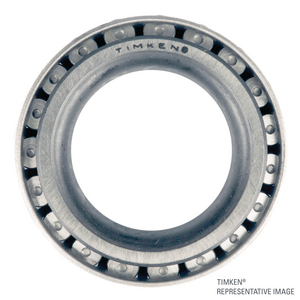

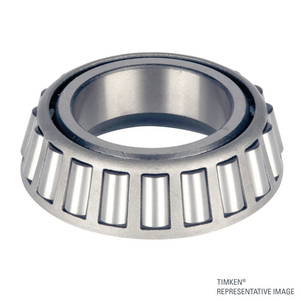

Productdetails : TIMKEN 42346 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 28,971x121,412x121,412 mm |
| Logistiek gewicht | 1327 g |
| Afmeting verpakking (D x B x H) | 154,432x154,432x39,116 mm |
| Gewicht verpakking | 1327,2 g |
| Binnendiameter | 87,96 mm |
| Breedte | 28,971 mm |
| Type lagerspeling | cn |
| Gewicht | 4,366 kg |
| Serie | 42000 |
| Totale breedte lager | 28,971 mm |
| Statische basisbelasting, radiaal - C0r | 241000 N |
| Dynamische basisbelasting, radiaal - Cr | 193000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 170,10 excl. BTW
/ stuk
€ 205,82 incl. BTW
- Levering doorgaans binnen 9 dagen
