Kegellager Timken HM911249, Binnendiameter: 61.913 mm | Breedte: 36.513 mm
Tapered Roller Bearing Cone
Zie technische informatieReferenties
Timken:HM911249
Rubix:03327116
Fabrikant:100073226
EAN:0053893705859
Technische samenvatting
| Binnendiameter | 61,913 mm |
|---|---|
| Breedte | 36,513 mm |
| Type lagerspeling | cn |

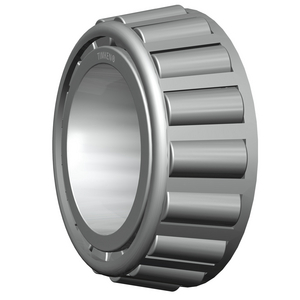

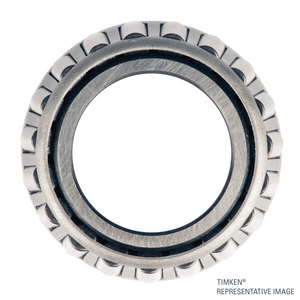

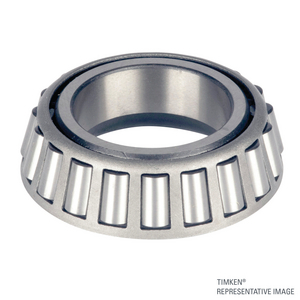

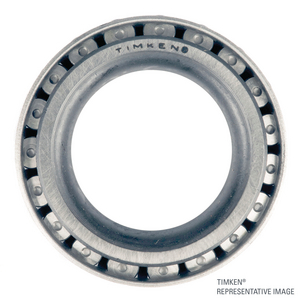

Productdetails : TIMKEN HM 911249 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 33,338x96,69x96,69 mm |
| Logistiek gewicht | 1354 g |
| Afmeting verpakking (D x B x H) | 141,732x141,732x49,022 mm |
| Gewicht verpakking | 1354 g |
| Binnendiameter | 61,913 mm |
| Breedte | 36,513 mm |
| Type lagerspeling | cn |
| Gewicht | 2,1 kg |
| Serie | hm911200 |
| Totale breedte lager | 36,513 mm |
| Statische basisbelasting, radiaal - C0r | 183000 N |
| Dynamische basisbelasting, radiaal - Cr | 198000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 518,08 excl. BTW
/ stuk
€ 626,88 incl. BTW
- Levering doorgaans binnen 9 dagen
