Kegellager Timken 433, Buitendiameter: 67.277 mm | Binnendiameter: 31.75 mm | Breedte: 16.256 mm
Tapered Roller Bearing Cup
Zie technische informatieReferenties
Timken:433
Rubix:03322807
Fabrikant:100039468
EAN:0053893032054
Technische samenvatting
| Binnendiameter | 31,75 mm |
|---|---|
| Buitendiameter | 67,277 mm |
| Breedte | 16,256 mm |

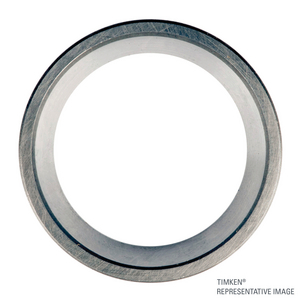

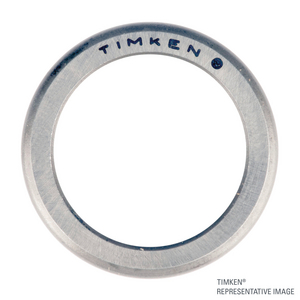

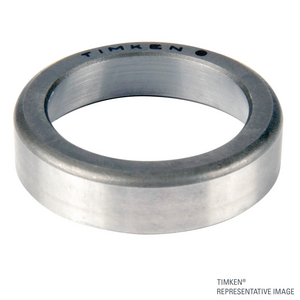

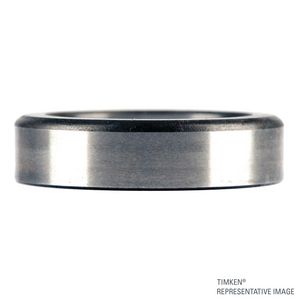

Productdetails : TIMKEN 433 CUP
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 30,226x88,392x88,392 mm |
| Logistiek gewicht | 330 g |
| Afmeting verpakking (D x B x H) | 103,632x103,632x34,544 mm |
| Gewicht verpakking | 330,2 g |
| Binnendiameter | 31,75 mm |
| Buitendiameter | 67,277 mm |
| Breedte | 16,256 mm |
| Type lagerspeling | cn |
| Gewicht | 0,3 kg |
| Serie | lm67000 |
| Totale breedte lager | 20,32 mm |
| Statische basisbelasting, radiaal - C0r | 44600 N |
| Dynamische basisbelasting, radiaal - Cr | 46700 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.273,27 excl. BTW
/ stuk
€ 1.540,66 incl. BTW
- Levering doorgaans binnen 9 dagen
