Kegellager Timken 572A, Buitendiameter: 139.982 mm | Binnendiameter: 78.438 mm | Breedte: 28.575 mm
Tapered Roller Bearing Cup
Zie technische informatieReferenties
Timken:572A
Rubix:03323780
Fabrikant:100054327
EAN:0053893059464
Technische samenvatting
| Binnendiameter | 78,438 mm |
|---|---|
| Buitendiameter | 139,982 mm |
| Breedte | 28,575 mm |

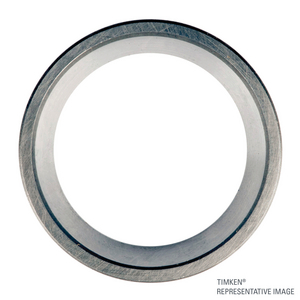

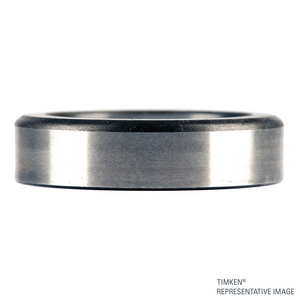

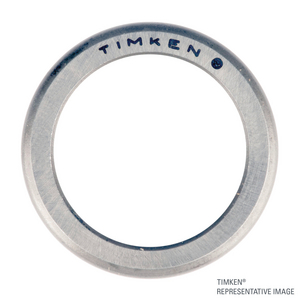

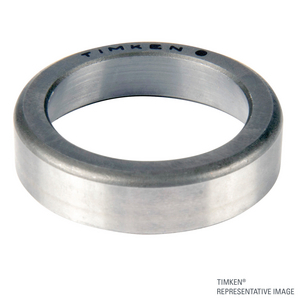

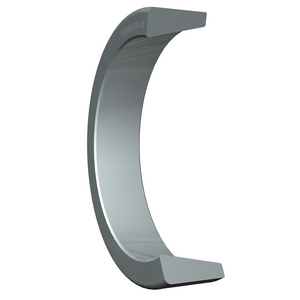

Productdetails : TIMKEN 572 A CUP
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 28,702x139,954x139,954 mm |
| Logistiek gewicht | 701 g |
| Afmeting verpakking (D x B x H) | 154,432x154,432x39,116 mm |
| Gewicht verpakking | 700,8 g |
| Binnendiameter | 78,438 mm |
| Buitendiameter | 139,982 mm |
| Breedte | 28,575 mm |
| Type lagerspeling | cn |
| Gewicht | 2,1 kg |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 302,64 excl. BTW
/ stuk
€ 366,19 incl. BTW
- Levering doorgaans binnen 9 dagen
