Kegellager Timken HM743310CD, Buitendiameter: 380.898 mm | Breedte: 114.3 mm
Tapered Roller Bearing Double Cup
Zie technische informatieReferenties
Timken:HM743310CD
Rubix:03326953
Fabrikant:100114769
EAN:0053893679167
Technische samenvatting
| Buitendiameter | 380,898 mm |
|---|---|
| Breedte | 114,3 mm |
| Type lagerspeling | cn |

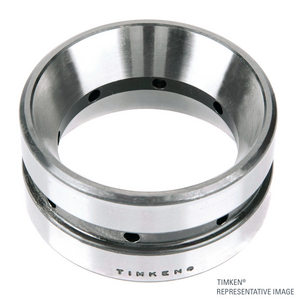

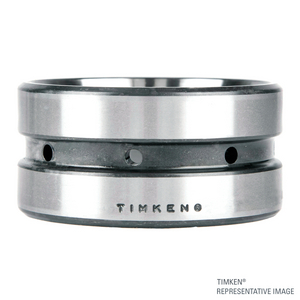

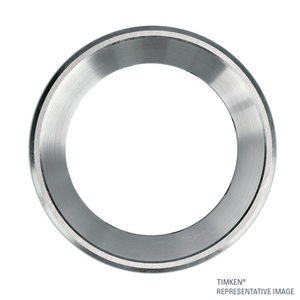

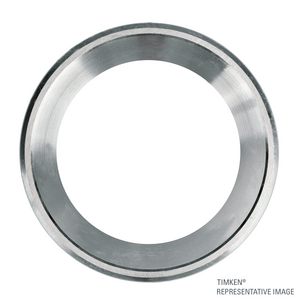

Productdetails : TIMKEN HM 743310 CD CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 114,3x333,502x333,502 mm |
| Logistiek gewicht | 13869 g |
| Afmeting verpakking (D x B x H) | 81,026x374,65x374,65 mm |
| Gewicht verpakking | 13869 g |
| Buitendiameter | 380,898 mm |
| Breedte | 114,3 mm |
| Type lagerspeling | cn |
| Gewicht | 54,398 kg |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 4.626,50 excl. BTW
/ stuk
€ 5.598,06 incl. BTW
- Levering doorgaans binnen 9 dagen
