Kegellager Timken 36620D, Buitendiameter: 193.675 mm | Binnendiameter: 146.05 mm | Breedte: 28.575 mm
Tapered Roller Double Cup Component
Zie technische informatieReferenties
Timken:36620D
Rubix:03322181
Fabrikant:100071647
EAN:0053893271729
Technische samenvatting
| Binnendiameter | 146,05 mm |
|---|---|
| Buitendiameter | 193,675 mm |
| Breedte | 28,575 mm |

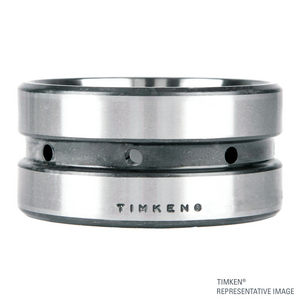

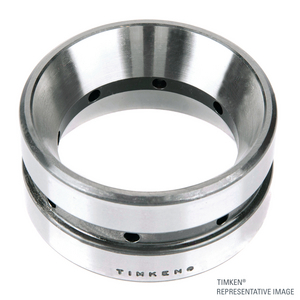

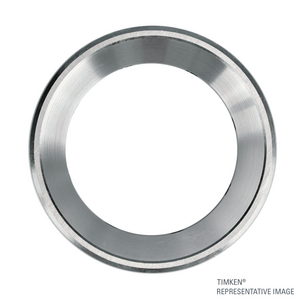

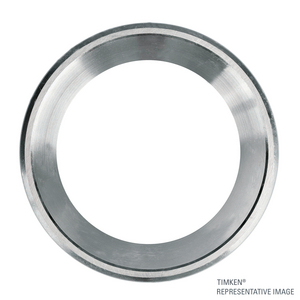

Productdetails : TIMKEN 36620 D CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 53,975x193,675x193,675 mm |
| Logistiek gewicht | 1732 g |
| Afmeting verpakking (D x B x H) | 219,1512x219,1512x58,7756 mm |
| Gewicht verpakking | 1731,8 g |
| Binnendiameter | 146,05 mm |
| Buitendiameter | 193,675 mm |
| Breedte | 28,575 mm |
| Type lagerspeling | cn |
| Gewicht | 4,686 kg |
| Serie | 36600 |
| Totale breedte lager | 65,082 mm |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.006,43 excl. BTW
/ stuk
€ 1.217,78 incl. BTW
- Levering doorgaans binnen 9 dagen
