Kegellager Timken 476-90293, Buitendiameter: 143.002 mm | Binnendiameter: 59.944 mm | Breedte: 73.152 mm
Kegellager
Zie technische informatieReferenties
Timken:476-90293
Rubix:03323059
EAN:0053893039374
Technische samenvatting
| Binnendiameter | 59,944 mm |
|---|---|
| Buitendiameter | 143,002 mm |
| Breedte | 73,152 mm |

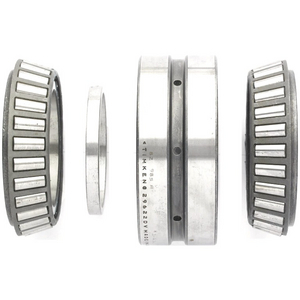

Productdetails : TIMKEN 476-90293 KEGELLAGER ASSY
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken 476-90293 is een kegellager dubbel buitenring (double cup) in TDO-uitvoering uit serie 475. Voor zware radiale belastingen.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 73,152x143,002x143,002 mm |
| Logistiek gewicht | 6223 g |
| Afmeting verpakking (D x B x H) | 77,724x174,752x174,752 mm |
| Binnendiameter | 59,944 mm |
| Buitendiameter | 143,002 mm |
| Breedte | 73,152 mm |
| Type lagerspeling | cn |
| Gewicht | 6,455 kg |
| Serie | 475 |
| Koker | staal |
| Totale breedte lager | 73,152 mm |
| Statische basisbelasting, radiaal - C0r | 186380 N |
| Dynamische basisbelasting, radiaal - Cr | 143233 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 4.168,25 excl. BTW
/ stuk
€ 5.043,58 incl. BTW
- Levering doorgaans binnen 9 dagen
