Kegellager Timken H924043, Binnendiameter: 109.985 mm | Breedte: 52.388 mm
Tapered Roller Bearing Cone
Zie technische informatieReferenties
Timken:H924043
Rubix:03326303
Fabrikant:100073285
EAN:0053893709888
Technische samenvatting
| Binnendiameter | 109,985 mm |
|---|---|
| Breedte | 52,388 mm |
| Type lagerspeling | cn |

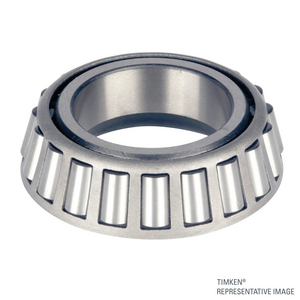

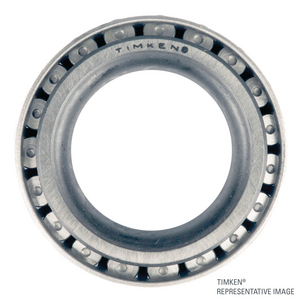

Productdetails : TIMKEN H 924043 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 52,324x163,576x163,576 mm |
| Logistiek gewicht | 5370 g |
| Afmeting verpakking (D x B x H) | 88,9x203,2x203,2 mm |
| Gewicht verpakking | 5370,1 g |
| Binnendiameter | 109,985 mm |
| Breedte | 52,388 mm |
| Type lagerspeling | cn |
| Gewicht | 8,4 kg |
| Serie | h924000 |
| Totale breedte lager | 55,563 mm |
| Statische basisbelasting, radiaal - C0r | 610000 N |
| Dynamische basisbelasting, radiaal - Cr | 470000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.641,76 excl. BTW
/ stuk
€ 1.986,53 incl. BTW
- Levering doorgaans binnen 9 dagen
