Kegellager Timken HM321245, Binnendiameter: 99.212 mm | Breedte: 98.425 mm
Tapered Roller Bearing Cone
Zie technische informatieReferenties
Timken:HM321245
Rubix:03326908
Fabrikant:100088069
EAN:0053893594996
Technische samenvatting
| Binnendiameter | 99,212 mm |
|---|---|
| Breedte | 98,425 mm |
| Type lagerspeling | cn |

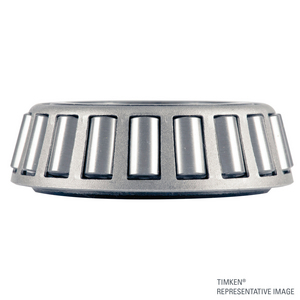

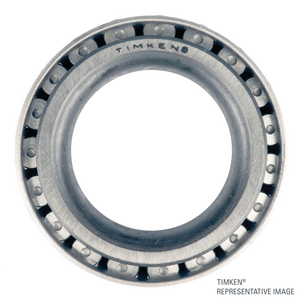

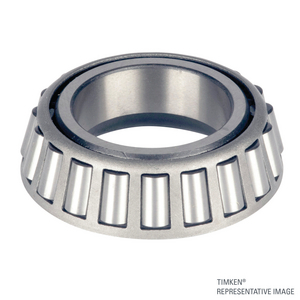

Productdetails : TIMKEN HM 321245 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 49,213x134,188x134,188 mm |
| Logistiek gewicht | 2869 g |
| Afmeting verpakking (D x B x H) | 174,7012x174,7012x62,0776 mm |
| Gewicht verpakking | 2869 g |
| Binnendiameter | 99,212 mm |
| Breedte | 98,425 mm |
| Type lagerspeling | cn |
| Gewicht | 3,18 kg |
| Serie | hm321200 |
| Totale breedte lager | 98,425 mm |
| Dynamische basisbelasting, radiaal - Cr | 89600 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 945,00 excl. BTW
/ stuk
€ 1.143,45 incl. BTW
- Levering doorgaans binnen 9 dagen
