Kegellager Timken 3129, Buitendiameter: 76.2 mm | Binnendiameter: 28.575 mm | Breedte: 23.813 mm
Tapered Roller Bearing Cup
Zie technische informatieReferenties
Timken:3129
Rubix:03321751
Fabrikant:100055640
EAN:0053893123882
Technische samenvatting
| Binnendiameter | 28,575 mm |
|---|---|
| Buitendiameter | 76,2 mm |
| Breedte | 23,813 mm |

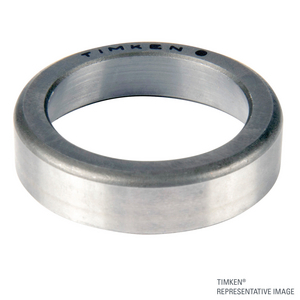

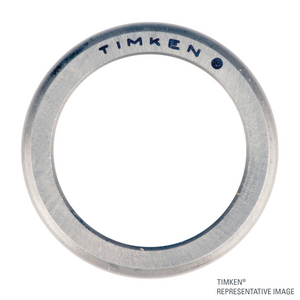

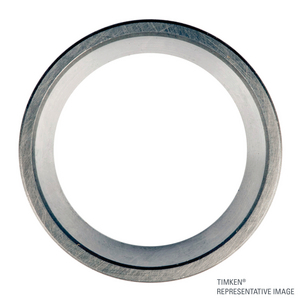

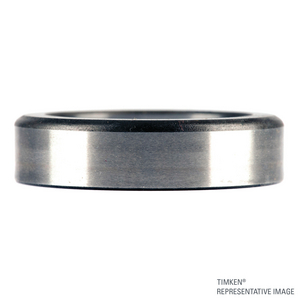

Productdetails : TIMKEN 3129 CUP
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 23,876x76,2x76,2 mm |
| Logistiek gewicht | 285 g |
| Afmeting verpakking (D x B x H) | 84,582x84,582x26,67 mm |
| Gewicht verpakking | 284,9 g |
| Binnendiameter | 28,575 mm |
| Buitendiameter | 76,2 mm |
| Breedte | 23,813 mm |
| Type lagerspeling | cn |
| Gewicht | 0,7 kg |
| Serie | 3100 |
| Totale breedte lager | 30,163 mm |
| Statische basisbelasting, radiaal - C0r | 102000 N |
| Dynamische basisbelasting, radiaal - Cr | 24600 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 83,43 excl. BTW
/ stuk
€ 100,95 incl. BTW
- Levering doorgaans binnen 9 dagen
