Kegellager Timken JM231613, Buitendiameter: 225 mm | Binnendiameter: 150 mm | Breedte: 34.925 mm

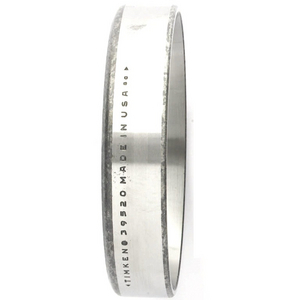

Tapered Roller Bearing Cup
Zie technische informatieZie documentenReferenties
Timken:JM231613
Rubix:03327480
EAN:0053893660172
Technische samenvatting
| Binnendiameter | 150 mm |
|---|---|
| Buitendiameter | 225 mm |
| Breedte | 34,925 mm |
Documenten
Productdetails : TIMKEN JM 231613 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistiek gewicht | 2130 g |
| Afmeting verpakking (D x B x H) | 50,8x260,35x260,35 mm |
| Binnendiameter | 150 mm |
| Buitendiameter | 225 mm |
| Breedte | 34,925 mm |
| Gewicht | 6,2 kg |
| Serie | m231600 |
| Koker | staal |
| Totale breedte lager | 34,925 mm |
| Statische basisbelasting, radiaal - C0r | 668000 N |
| Dynamische basisbelasting, radiaal - Cr | 55600 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.689,40 excl. BTW
/ stuk
€ 2.044,17 incl. BTW
- Levering doorgaans binnen 9 dagen
