Kegellager Timken 387/382A, Buitendiameter: 96.838 mm | Binnendiameter: 57.15 mm | Breedte: 21.001 mm
Tapered Roller Bearings
Zie technische informatieReferenties
Timken:387/382A
Rubix:03322405
EAN:0053893650920
Technische samenvatting
| Binnendiameter | 57,15 mm |
|---|---|
| Buitendiameter | 96,838 mm |
| Breedte | 21,001 mm |

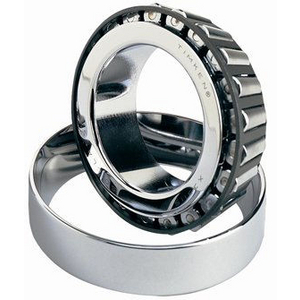

Productdetails : TIMKEN 387/382 A KEGELLAGER EENRIJIG
Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Sterke punten
Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 104x104x35 mm |
| Logistiek gewicht | 640 g |
| Afmeting verpakking (D x B x H) | 104x104x35 mm |
| Gewicht verpakking | 640 g |
| Binnendiameter | 57,15 mm |
| Buitendiameter | 96,838 mm |
| Breedte | 21,001 mm |
| Gewicht | 0,6 kg |
| Serie | 385 |
| Koker | staal |
| Totale breedte lager | 21,001 mm |
| Norm | ansi/abma 19.2 |
| Statische basisbelasting, radiaal - C0r | 107000 N |
| Dynamische basisbelasting, radiaal - Cr | 108000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 75,75 excl. BTW
/ stuk
€ 91,66 incl. BTW
- Levering doorgaans binnen 9 dagen
