Kegellager Timken 39243DE, Binnendiameter: 61.912 mm | Breedte: 101.6 mm
Tapered Roller Double Row Cone
Zie technische informatieReferenties
Timken:39243DE
Rubix:03322492
Fabrikant:100048622
EAN:0053893277967
Technische samenvatting
| Binnendiameter | 61,912 mm |
|---|---|
| Breedte | 101,6 mm |
| Type lagerspeling | cn |

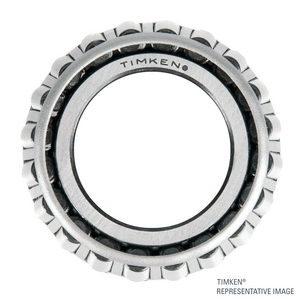

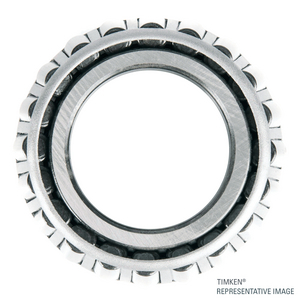

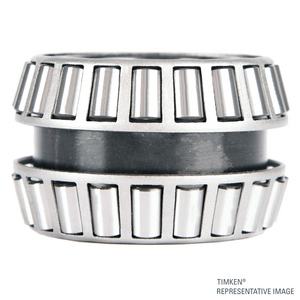

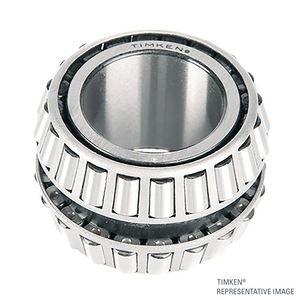

Productdetails : TIMKEN 39243 DE CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 101,6x83,312x83,312 mm |
| Logistiek gewicht | 1654 g |
| Afmeting verpakking (D x B x H) | 152,4x101,6x101,6 mm |
| Gewicht verpakking | 1654,3 g |
| Binnendiameter | 61,912 mm |
| Breedte | 101,6 mm |
| Type lagerspeling | cn |
| Gewicht | 1,84 kg |
| Serie | 39000 |
| Totale breedte lager | 101,6 mm |
| Statische basisbelasting, radiaal - C0r | 240203,97 N |
| Dynamische basisbelasting, radiaal - Cr | 159246,33 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 540,36 excl. BTW
/ stuk
€ 653,84 incl. BTW
- Levering doorgaans binnen 9 dagen
