Kegellager Timken 67390TD, Binnendiameter: 133.35 mm | Breedte: 92.075 mm
Tapered Roller Double Row Cone
Zie technische informatieReferenties
Timken:67390TD
Rubix:03324314
Fabrikant:100042928
EAN:0053893366074
Technische samenvatting
| Binnendiameter | 133,35 mm |
|---|---|
| Breedte | 92,075 mm |
| Type lagerspeling | cn |

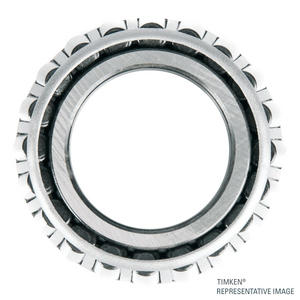

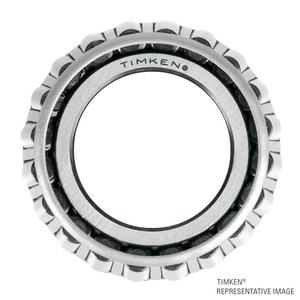

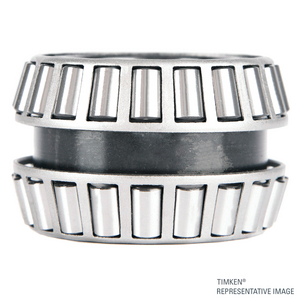

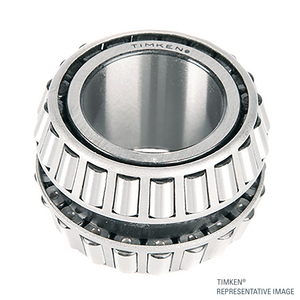

Productdetails : TIMKEN 67390 TD CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 92,202x164,338x164,338 mm |
| Logistiek gewicht | 6751 g |
| Afmeting verpakking (D x B x H) | 130,302x196,85x196,85 mm |
| Gewicht verpakking | 6750,8 g |
| Binnendiameter | 133,35 mm |
| Breedte | 92,075 mm |
| Type lagerspeling | cn |
| Gewicht | 10,6 kg |
| Serie | 67300 |
| Totale breedte lager | 92,075 mm |
| Dynamische basisbelasting, radiaal - Cr | 95300 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 3.926,88 excl. BTW
/ stuk
€ 4.751,52 incl. BTW
- Levering doorgaans binnen 9 dagen
