Kegellager Timken 22162DE, Buitendiameter: 85.725 mm | Binnendiameter: 41.275 mm | Breedte: 1.625 mm
Kegellager
Zie technische informatieReferenties
Timken:22162DE
Rubix:03321208
EAN:0053893204628
Technische samenvatting
| Binnendiameter | 41,275 mm |
|---|---|
| Buitendiameter | 85,725 mm |
| Breedte | 1,625 mm |

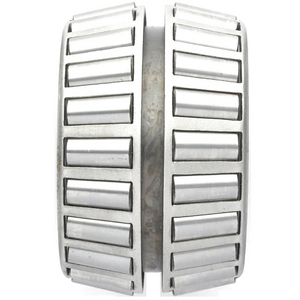

Productdetails : TIMKEN 22162 DE CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Timken 22162 DE cone (extended small rib) kegelrol-lager. Boring 41,275 mm, buitendiameter 85,725 mm, breedte 1,6250 mm. Gewicht 1,01 kg.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 85,852x60,452x60,452 mm |
| Logistiek gewicht | 777 g |
| Afmeting verpakking (D x B x H) | 68,4276x106,3752x106,3752 mm |
| Binnendiameter | 41,275 mm |
| Buitendiameter | 85,725 mm |
| Breedte | 1,625 mm |
| Type lagerspeling | cn |
| Gewicht | 1,01 kg |
| Serie | 19000 – 22000 series |
| Totale breedte lager | 3,375 mm |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 383,02 excl. BTW
/ stuk
€ 463,45 incl. BTW
- Levering doorgaans binnen 9 dagen
