Kegellager Timken 2788-90014, Buitendiameter: 76.2 mm | Binnendiameter: 38.1 mm | Breedte: 23.813 mm
Kegellager
Zie technische informatieReferenties
Timken:2788-90014
Rubix:03321464
EAN:0053893120706
Technische samenvatting
| Binnendiameter | 38,1 mm |
|---|---|
| Buitendiameter | 76,2 mm |
| Breedte | 23,813 mm |

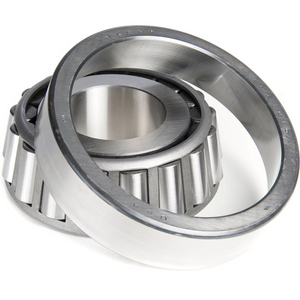

Productdetails : TIMKEN 2788-90014 KEGELLAGER ASSY
Timken’s high-precision tapered roller bearings consist of carefully matched components that offer an added degree of fine-tuning in the bearing setting and adjustment procedure to maximize customer machine productivity. Timken manufactures high-speed designs with a variable preload capability for optimum performance. Timken also manufactures Precision Plus bearings – having an overall radial runout less than a single micron.
Timken kegellager assy 2788-90014 is een TS (enkele rij) kegellager met een boring van 38,1 mm, OD 76,2 mm en breedte 23,813 mm. Hoge draagkracht met statische radiale belasting 102000 N en dynamische radiale belasting (90M) 22500 N.
Sterke punten
In particular, precision tapered roller bearings feature: Tighter manufacturing specifications resulting in greater rotational accuracy; Reduced tolerances on bore and outside diameter creating improved performance in high speed, high temperature applications; Straight race and/or roller profile designs (versus crowned profile designs) for increased accuracy and rigidity; Controlled machining and assembly processes to ensure that components are matched properly and exact specifications are met; High load-carrying capability compared to other bearing types so that fatigue life is enhanced; The ability to be adjusted during installation so that operating torque, shaft rigidity and operating temperature can be precisely controlled.
Toepassingen
Machine Tool; Printing Press; Rolling Mill
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 23,876x76,2x76,2 mm |
| Logistiek gewicht | 513 g |
| Afmeting verpakking (D x B x H) | 31,75x82,55x82,55 mm |
| Binnendiameter | 38,1 mm |
| Buitendiameter | 76,2 mm |
| Breedte | 23,813 mm |
| Type lagerspeling | cn |
| Gewicht | 0,5 kg |
| Serie | ts |
| Koker | staal |
| Statische basisbelasting, radiaal - C0r | 102000 N |
| Dynamische basisbelasting, radiaal - Cr | 22500 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.278,32 excl. BTW
/ stuk
€ 1.546,77 incl. BTW
- Levering doorgaans binnen 9 dagen
