Kegellager Timken HM120848-90127, Buitendiameter: 165.1 mm | Binnendiameter: 101.6 mm | Breedte: 106.363 mm
Kegellager
Zie technische informatieReferenties
Timken:HM120848-90127
Rubix:03326642
EAN:0053893972251
Technische samenvatting
| Binnendiameter | 101,6 mm |
|---|---|
| Buitendiameter | 165,1 mm |
| Breedte | 106,363 mm |

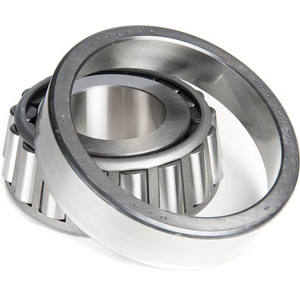

Productdetails : TIMKEN HM 120848-90127 KEGELLAGER ASSY
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
Timken kegellager assy HM120848-90127 met 101,6 mm boring en zware belastingsratings voor robuuste prestaties. Statische radiale C0r 431.000 N en dynamische radiale Cr 70.000 N.
Sterke punten
Single cone and cup. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 106,363x165,1x165,1 mm |
| Logistiek gewicht | 14927 g |
| Afmeting verpakking (D x B x H) | 177,8x292,1x177,8 mm |
| Binnendiameter | 101,6 mm |
| Buitendiameter | 165,1 mm |
| Breedte | 106,363 mm |
| Type lagerspeling | cn |
| Gewicht | 8,781 kg |
| Serie | hm120800 |
| Koker | staal |
| Statische basisbelasting, radiaal - C0r | 431000 N |
| Dynamische basisbelasting, radiaal - Cr | 70000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 2.968,40 excl. BTW
/ stuk
€ 3.591,76 incl. BTW
- Levering doorgaans binnen 9 dagen
