Kegellager Timken HM921310D, Buitendiameter: 189.967 mm | Binnendiameter: 89.916 mm | Breedte: 54.102 mm
Kegellager
Zie technische informatieReferenties
Timken:HM921310D
Rubix:03327120
EAN:0053893708515
Technische samenvatting
| Binnendiameter | 89,916 mm |
|---|---|
| Buitendiameter | 189,967 mm |
| Breedte | 54,102 mm |

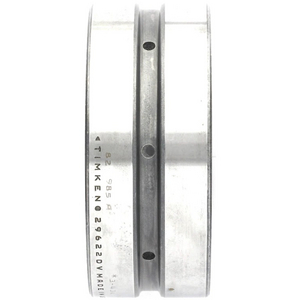

Productdetails : TIMKEN HM 921310 D CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken HM921310D is een dubbele kegelrol-lagercup (TDO) voor toepassingen met omkeermomenten. OD 189,967 mm, breedte 54,102 mm, gewicht 9,444 kg.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 54,102x189,967x189,967 mm |
| Logistiek gewicht | 2852 g |
| Afmeting verpakking (D x B x H) | 63,5x190,5x190,5 mm |
| Binnendiameter | 89,916 mm |
| Buitendiameter | 189,967 mm |
| Breedte | 54,102 mm |
| Type lagerspeling | cn |
| Gewicht | 9,444 kg |
| Serie | hm921300 |
| Materiaal | melt steel |
| Koker | staal |
| Totale breedte lager | 85,852 mm |
| Dynamische basisbelasting, radiaal - Cr | 129000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.739,04 excl. BTW
/ stuk
€ 2.104,24 incl. BTW
- Levering doorgaans binnen 9 dagen
