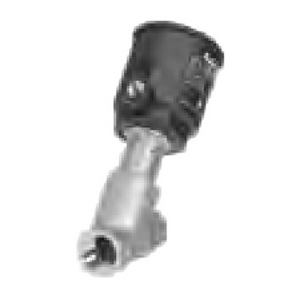

ASCO VENTIEL E290D0210 NC DN15 G1/2 32MM RVS 0-12BAR
Seat Valve
Zie technische informatieZie documentenReferenties
Asco:E290D0210SA0000
Rubix:A0498113
Fabrikant:E290D0210SA0000
EAN:3661475004077
Technische samenvatting
| Nominale druk | 10 bar |
|---|---|
| Type | asco ventiel e290d0210 nc dn15 g1/2 32mm rvs 0-12bar |
Documenten
Productdetails : ASCO VENTIEL E290D0210 NC DN15 G1/2 32MM RVS 0-12BAR
Sterke punten
•Suitable for a broad range of industrial machines and manufacturing process High reliability, long service life and exceptional and repeatable tight shut-off
Adjustable actuator enables 360° access to pilot port
Modular design provides exceptional flexibility
Large piloting orifice and low hysteresis creates fast cycle times
Anti-water hammer design and back pressure resistant
High performance, maintenance-free actuator and stuffing box
Easy and fast maintenance without the need to remove valve body from pipework
Adjustable actuator enables 360° access to pilot port
Modular design provides exceptional flexibility
Large piloting orifice and low hysteresis creates fast cycle times
Anti-water hammer design and back pressure resistant
High performance, maintenance-free actuator and stuffing box
Easy and fast maintenance without the need to remove valve body from pipework
Toepassingen
Chemical;Oil;Gas and Paint Coating Industries
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Nominale druk | 10 bar |
| Type | asco ventiel e290d0210 nc dn15 g1/2 32mm rvs 0-12bar |
| Minimale temperatuur | -10 °C |
| Maximumtemperatuur | 60 °C |
| Gewicht | 0,4 kg |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 282,92 excl. BTW
/ stuk
€ 342,33 incl. BTW
- Levering doorgaans binnen 16 dagen
