Kegellager Timken 49580, Binnendiameter: 47.625 mm | Breedte: 31.75 mm
Tapered Roller Bearing Cone
Zie technische informatieZie documentenReferenties
Timken:49580
Rubix:03323324
Fabrikant:100053451
EAN:0053893317915
Technische samenvatting
| Binnendiameter | 47,625 mm |
|---|---|
| Breedte | 31,75 mm |
| Type lagerspeling | cn |
Documenten

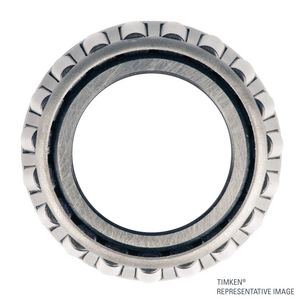

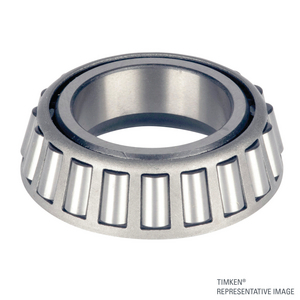

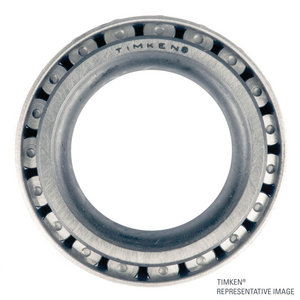

Productdetails : TIMKEN 49580 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 31,75x75,4x75,4 mm |
| Logistiek gewicht | 753 g |
| Afmeting verpakking (D x B x H) | 103,632x103,632x34,544 mm |
| Gewicht verpakking | 753 g |
| Binnendiameter | 47,625 mm |
| Breedte | 31,75 mm |
| Type lagerspeling | cn |
| Gewicht | 1,2 kg |
| Serie | 49500 |
| Koker | staal |
| Totale breedte lager | 31,75 mm |
| Norm | iso |
| Statische basisbelasting, radiaal - C0r | 155000 N |
| Dynamische basisbelasting, radiaal - Cr | 133000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 250,67 excl. BTW
/ stuk
€ 303,31 incl. BTW
- Levering doorgaans binnen 9 dagen
