Kegellager Timken HM237536, Binnendiameter: 165.1 mm | Breedte: 63.5 mm
Tapered Roller Bearing Cone
Zie technische informatieReferenties
Timken:HM237536
Rubix:03326860
Fabrikant:100187238
EAN:0053893535654
Technische samenvatting
| Binnendiameter | 165,1 mm |
|---|---|
| Breedte | 63,5 mm |
| Type lagerspeling | cn |

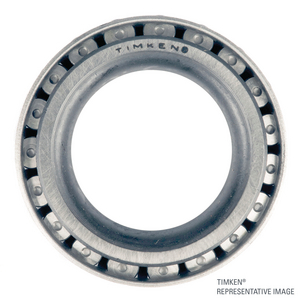

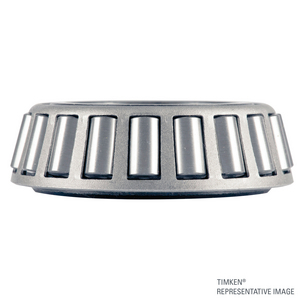

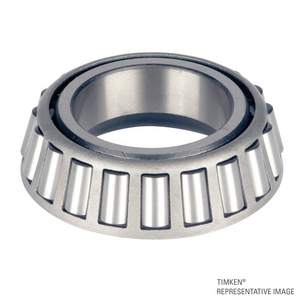

Productdetails : TIMKEN HM 237536 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 63,5x225,552x225,552 mm |
| Logistiek gewicht | 12254 g |
| Afmeting verpakking (D x B x H) | 79,502x273,05x273,05 mm |
| Gewicht verpakking | 12254,3 g |
| Binnendiameter | 165,1 mm |
| Breedte | 63,5 mm |
| Type lagerspeling | cn |
| Gewicht | 16,8 kg |
| Serie | hm237500 |
| Totale breedte lager | 63,505 mm |
| Statische basisbelasting, radiaal - C0r | 1240000 N |
| Dynamische basisbelasting, radiaal - Cr | 976000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 3.831,88 excl. BTW
/ stuk
€ 4.636,57 incl. BTW
- Levering doorgaans binnen 9 dagen
