Kegellager Timken 26284D, Buitendiameter: 71.973 mm | Binnendiameter: 29.987 mm | Breedte: 36.513 mm
Tapered Roller Double Cup Component
Zie technische informatieReferenties
Timken:26284D
Rubix:03321356
Fabrikant:100110671
EAN:0053893222462
Technische samenvatting
| Binnendiameter | 29,987 mm |
|---|---|
| Buitendiameter | 71,973 mm |
| Breedte | 36,513 mm |

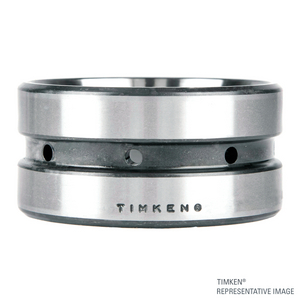

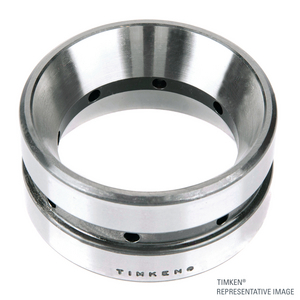

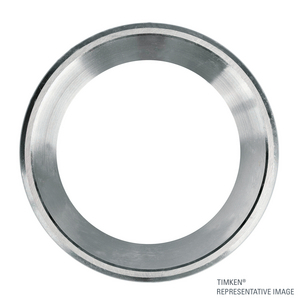

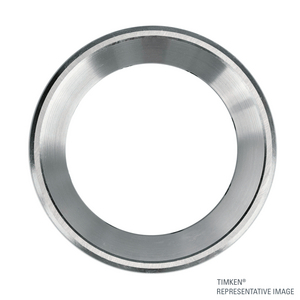

Productdetails : TIMKEN 26284 D CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 36,576x71,882x71,882 mm |
| Logistiek gewicht | 346 g |
| Afmeting verpakking (D x B x H) | 87,884x87,884x37,846 mm |
| Gewicht verpakking | 346,1 g |
| Binnendiameter | 29,987 mm |
| Buitendiameter | 71,973 mm |
| Breedte | 36,513 mm |
| Type lagerspeling | cn |
| Gewicht | 0,765 kg |
| Serie | 26000 |
| Totale breedte lager | 42,76 mm |
| Dynamische basisbelasting, radiaal - Cr | 102000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 836,92 excl. BTW
/ stuk
€ 1.012,67 incl. BTW
- Levering doorgaans binnen 9 dagen
