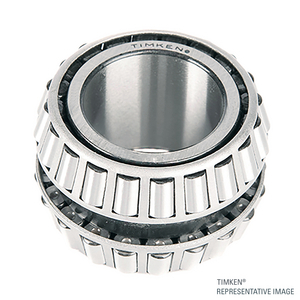

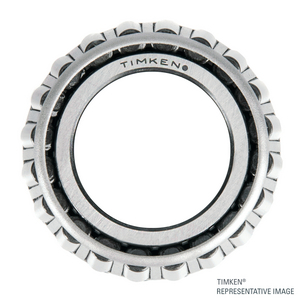

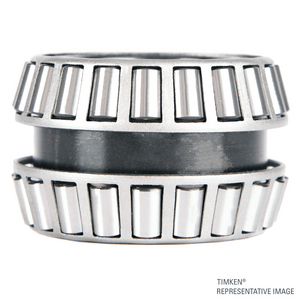

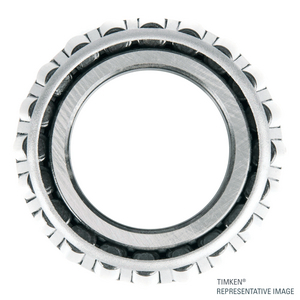

Kegellager Timken 19145D, Binnendiameter: 36.513 mm | Breedte: 38.1 mm
Tapered Roller Double Row Cone
Zie technische informatieReferenties
Timken:19145D
Rubix:03321158
Fabrikant:100000596
EAN:0053893199207
Technische samenvatting
| Binnendiameter | 36,513 mm |
|---|---|
| Breedte | 38,1 mm |
| Type lagerspeling | cn |
Productdetails : TIMKEN 19145 D CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 38,1x53,086x53,086 mm |
| Logistiek gewicht | 443 g |
| Afmeting verpakking (D x B x H) | 66,802x66,802x44,45 mm |
| Gewicht verpakking | 442,7 g |
| Binnendiameter | 36,513 mm |
| Breedte | 38,1 mm |
| Type lagerspeling | cn |
| Gewicht | 0,6 kg |
| Serie | tdi (tapered double inner) |
| Totale breedte lager | 36,807 mm |
| Statische basisbelasting, radiaal - C0r | 57800 N |
| Dynamische basisbelasting, radiaal - Cr | 88300 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 413,32 excl. BTW
/ stuk
€ 500,12 incl. BTW
- Levering doorgaans binnen 9 dagen
