Kegellager Timken HH814542, Binnendiameter: 60.325 mm | Breedte: 52.705 mm
Timken Tapered Roller Bearing HH814500
Zie technische informatieReferenties
Timken:HH814542
Rubix:03326565
Fabrikant:100086341
EAN:0053893695921
Technische samenvatting
| Binnendiameter | 60,325 mm |
|---|---|
| Breedte | 52,705 mm |
| Type lagerspeling | cn |

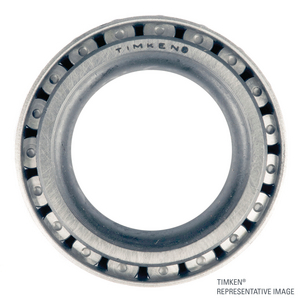

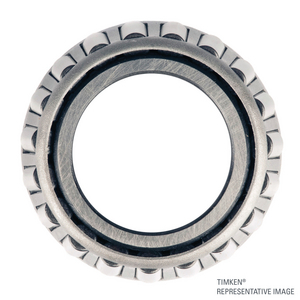

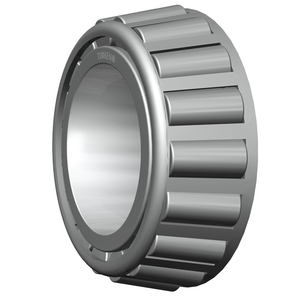

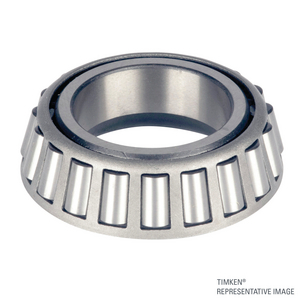

Productdetails : TIMKEN HH 814542 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 52,705x110,571x110,571 mm |
| Logistiek gewicht | 3060 g |
| Afmeting verpakking (D x B x H) | 154,432x154,432x68,072 mm |
| Gewicht verpakking | 3059,9 g |
| Binnendiameter | 60,325 mm |
| Breedte | 52,705 mm |
| Type lagerspeling | cn |
| Serie | hh814500 |
| Koker | staal |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.463,77 excl. BTW
/ stuk
€ 1.771,16 incl. BTW
- Levering doorgaans binnen 9 dagen
