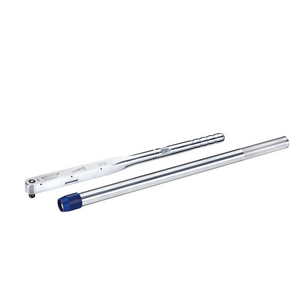

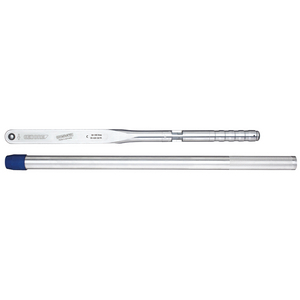

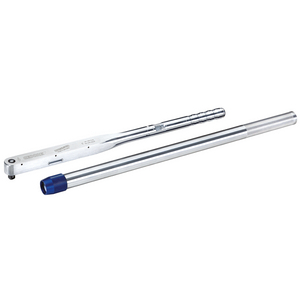

GEDORE MOMENTSLEUTEL CR 1/2" 60-300NM MET ALU OPSTEEKPIJP

Torque Wrench

Zie technische informatieZie documenten
Referenties
Gedore:2926997
Rubix:A0209819
Fabrikant:2926997
EAN:4002805935286
GEDORE MOMENTSLEUTEL CR 1/2" 60-300NM MET ALU OPSTEEKPIJP
Technische samenvatting
Aansluiting1/2 ''
Lengte617 mm
Zie alle specificaties
Documenten

Productdetails : GEDORE MOMENTSLEUTEL CR 1/2" 60-300NM MET ALU OPSTEEKPIJP


Sterke punten

•Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard

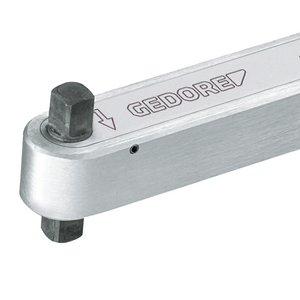

1/2" square drive with ball locking device as per DIN 3120 - A 12.5, ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with a scale graduation of 5 Nm and 5 lbf·ft
With push button release
Technical advantage/Function:
Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a lever mechanism
Forged lever chain from our group own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Single- and double-square drive for controlled bi-directional tightening

Toepassingen

Industrial

Technische informatie


Attributen
Verpakkingshoeveelheid1
Aansluiting1/2 ''
Lengte617 mm
Gewicht2,7 kg
Normdin en iso 6789-2:2017
Laten zien UNSPSC / ECL@SS / HS-codes
701,41 excl. BTW
/ stuk
848,71 incl. BTW
  • Levering doorgaans binnen 9 dagen
