Kegellager Timken 78251D-70000, Buitendiameter: 140.03 mm | Binnendiameter: 63.5 mm | Breedte: 65.989 mm
Kegellager
Zie technische informatieReferenties
Timken:78251D-70000
Rubix:03324857
EAN:0053893402260
Technische samenvatting
| Binnendiameter | 63,5 mm |
|---|---|
| Buitendiameter | 140,03 mm |
| Breedte | 65,989 mm |

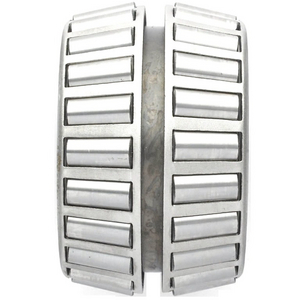

Productdetails : TIMKEN 78251 D CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Timken 78251D-70000 kegelrollenlager cone in TDI-uitvoering (double tapered cones). Voorzien van 63,5 mm boring en hoge radiale lastcapaciteit.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 66,04x101,854x101,854 mm |
| Logistiek gewicht | 2760 g |
| Afmeting verpakking (D x B x H) | 65,1256x136,6012x136,6012 mm |
| Binnendiameter | 63,5 mm |
| Buitendiameter | 140,03 mm |
| Breedte | 65,989 mm |
| Type lagerspeling | cn |
| Gewicht | 4,3 kg |
| Serie | timken tdi (double tapered cones) |
| Totale breedte lager | 66,091 mm |
| Norm | ISO LIFE CALCULATION METHOD (L10) |
| Statische basisbelasting, radiaal - C0r | 193000 N |
| Dynamische basisbelasting, radiaal - Cr | 298000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 3.352,99 excl. BTW
/ stuk
€ 4.057,12 incl. BTW
- Levering doorgaans binnen 9 dagen
