Kegellager Timken HM237546D-20025, Buitendiameter: 225.552 mm | Binnendiameter: 177.8 mm | Breedte: 123.825 mm
Kegellager
Zie technische informatieReferenties
Timken:HM237546D-20025
Rubix:03326898
EAN:0053893043456
Technische samenvatting
| Binnendiameter | 177,8 mm |
|---|---|
| Buitendiameter | 225,552 mm |
| Breedte | 123,825 mm |

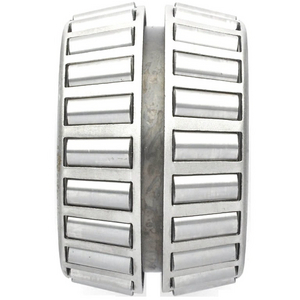

Productdetails : TIMKEN HM 237546 D-20025 CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Timken HM237546D kegel (TDI), serie HM237500. Afmetingen: d=177,8 mm en B=123,825 mm. Statische C0=1.240.000 N en dynamische C1=1.430.000 N.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 123,952x225,552x225,552 mm |
| Logistiek gewicht | 21127 g |
| Afmeting verpakking (D x B x H) | 292,1x152,4x292,1 mm |
| Binnendiameter | 177,8 mm |
| Buitendiameter | 225,552 mm |
| Breedte | 123,825 mm |
| Type lagerspeling | cn |
| Gewicht | 25,06 kg |
| Serie | hm237500 |
| Koker | staal |
| Totale breedte lager | 123,825 mm |
| Statische basisbelasting, radiaal - C0r | 1240000 N |
| Dynamische basisbelasting, radiaal - Cr | 1430000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 14.711,33 excl. BTW
/ stuk
€ 17.800,71 incl. BTW
- Levering doorgaans binnen 9 dagen
