Kegellager Timken JM624610B, Buitendiameter: 180 mm | Binnendiameter: 120 mm | Breedte: 26 mm
Kegellager
Zie technische informatieReferenties
Timken:JM624610B
Rubix:03327511
EAN:0053893654676

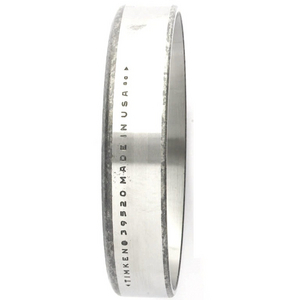

Productdetails : TIMKEN JM 624610 B CUP
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Kegelrollenlager single cup met flens (Type TSF) voor axiale positionering in de behuizing. Afmetingen 120x180x26 mm (boring x OD x cupbreedte).
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 25,999x180x180 mm |
| Logistiek gewicht | 854 g |
| Afmeting verpakking (D x B x H) | 30,3276x200,1012x200,1012 mm |
| Binnendiameter | 120 mm |
| Buitendiameter | 180 mm |
| Breedte | 26 mm |
| Type lagerspeling | cn |
| Gewicht | 2,9 kg |
| Serie | m624600 |
| Materiaal | chroomstaal (ongecoat) |
| Koker | staal |
| Totale breedte lager | 36 mm |
| Norm | ISO 355 |
| Statische basisbelasting, radiaal - C0r | 377000 N |
| Dynamische basisbelasting, radiaal - Cr | 64000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 3.582,54 excl. BTW
/ stuk
€ 4.334,87 incl. BTW
- Levering doorgaans binnen 9 dagen
