Kegellager Timken 866, Buitendiameter: 118 mm | Binnendiameter: 98.425 mm | Breedte: 57.531 mm
Kegellager
Zie technische informatieReferenties
Timken:866
Rubix:03325185
Fabrikant:100055309
EAN:0053893097787
Technische samenvatting
| Binnendiameter | 98,425 mm |
|---|---|
| Buitendiameter | 118 mm |
| Breedte | 57,531 mm |

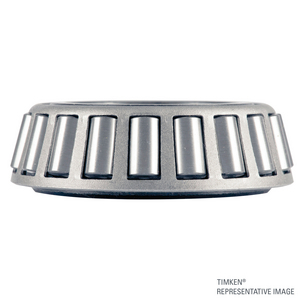

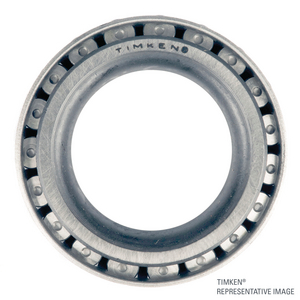

Productdetails : TIMKEN 866 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Timken 866 conus (single cone) voor taps toelopende rollagers. Afneembare kegel-binnenring (cone) met hoge radiale belastingsratings voor gepaarde montage op een as.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 57,531x139,413x139,413 mm |
| Logistiek gewicht | 4146 g |
| Afmeting verpakking (D x B x H) | 190,5x190,5x63,5 mm |
| Gewicht verpakking | 4145,8 g |
| Binnendiameter | 98,425 mm |
| Buitendiameter | 118 mm |
| Breedte | 57,531 mm |
| Type lagerspeling | cn |
| Gewicht | 15,14 kg |
| Serie | 855 |
| Totale breedte lager | 57,15 mm |
| Statische basisbelasting, radiaal - C0r | 630000 N |
| Dynamische basisbelasting, radiaal - Cr | 458000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 794,29 excl. BTW
/ stuk
€ 961,09 incl. BTW
- Levering doorgaans binnen 9 dagen
