Kegellager Timken 81575, Buitendiameter: 166.1 mm | Binnendiameter: 146.05 mm | Breedte: 50.005 mm
Kegellager
Zie technische informatieReferenties
Timken:81575
Rubix:03324928
Fabrikant:100030183
EAN:0053893408316
Technische samenvatting
| Binnendiameter | 146,05 mm |
|---|---|
| Buitendiameter | 166,1 mm |
| Breedte | 50,005 mm |

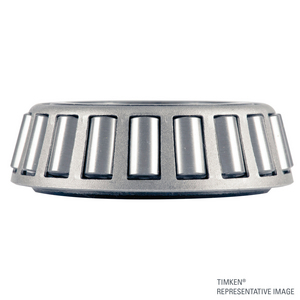

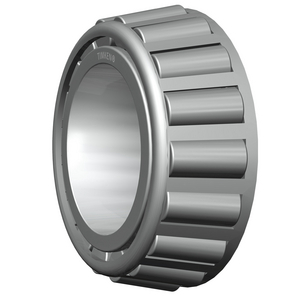

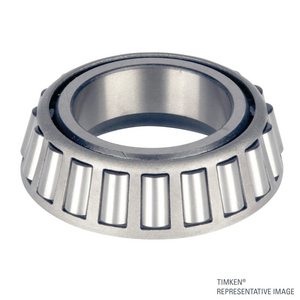

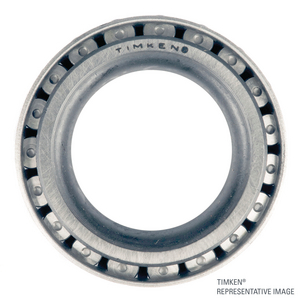

Productdetails : TIMKEN 81575 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Timken 81575 kegelrollager cone (TS) voor enkelzijdige montage. Bore 146,05 mm, breedte 50,005 mm en hoge draagkracht met CO 595000 N en C1 402000 N.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 50,005x194,198x194,198 mm |
| Logistiek gewicht | 5490 g |
| Afmeting verpakking (D x B x H) | 228,6x228,6x60,452 mm |
| Gewicht verpakking | 5489,8 g |
| Binnendiameter | 146,05 mm |
| Buitendiameter | 166,1 mm |
| Breedte | 50,005 mm |
| Type lagerspeling | cn |
| Gewicht | 17,555 kg |
| Serie | 81000 |
| Totale breedte lager | 47,625 mm |
| Statische basisbelasting, radiaal - C0r | 595000 N |
| Dynamische basisbelasting, radiaal - Cr | 402000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 7.964,11 excl. BTW
/ stuk
€ 9.636,57 incl. BTW
- Levering doorgaans binnen 9 dagen
