Kegellager Timken 08125DA, Buitendiameter: 60.325 mm | Binnendiameter: 31.75 mm | Breedte: 15.08 mm
Kegellager
Zie technische informatieReferenties
Timken:08125DA
Rubix:03320140
EAN:0053893168463
Technische samenvatting
| Binnendiameter | 31,75 mm |
|---|---|
| Buitendiameter | 60,325 mm |
| Breedte | 15,08 mm |

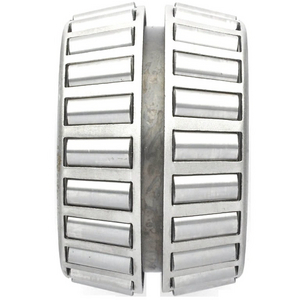

Productdetails : TIMKEN 08125 DA CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Timken 08125DA-conus voor kegelrollagers (serie 08000). Asymmetrische boring aan de OD-zijde (links) met 31,75 mm boring, 60,325 mm OD en 15,08 mm breedte.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 60,452x45,974x45,974 mm |
| Logistiek gewicht | 311 g |
| Afmeting verpakking (D x B x H) | 50,8x73,152x73,152 mm |
| Binnendiameter | 31,75 mm |
| Buitendiameter | 60,325 mm |
| Breedte | 15,08 mm |
| Type lagerspeling | cn |
| Gewicht | 0,36 kg |
| Serie | 08000 series |
| Koker | staal |
| Totale breedte lager | 14,684 mm |
| Statische basisbelasting, radiaal - C0r | 35000 N |
| Dynamische basisbelasting, radiaal - Cr | 31700 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 433,12 excl. BTW
/ stuk
€ 524,08 incl. BTW
- Levering doorgaans binnen 9 dagen
