Kegellager Timken 34268DA, Buitendiameter: 120 mm | Binnendiameter: 68.262 mm | Breedte: 93.662 mm
Kegellager
Zie technische informatieReferenties
Timken:34268DA
Rubix:03322010
EAN:0053893267135
Technische samenvatting
| Binnendiameter | 68,262 mm |
|---|---|
| Buitendiameter | 120 mm |
| Breedte | 93,662 mm |

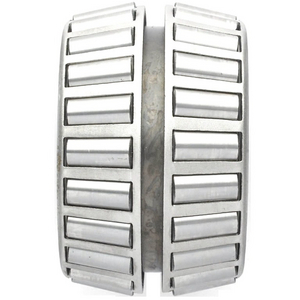

Productdetails : TIMKEN 34268 DA CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Timken 34268DA cone uit de 34000 Series. Bore 68,262 mm, OD 120 mm en gewicht 2,72 kg voor kegelrollager-toepassingen met radiale en axiale belasting.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 93,726x98,044x98,044 mm |
| Logistiek gewicht | 2477 g |
| Afmeting verpakking (D x B x H) | 149,352x107,95x149,352 mm |
| Binnendiameter | 68,262 mm |
| Buitendiameter | 120 mm |
| Breedte | 93,662 mm |
| Type lagerspeling | cn |
| Gewicht | 2,72 kg |
| Serie | 34000 series |
| Materiaal | case-gecarboneerd en doorgehard staal |
| Totale breedte lager | 45,986 mm |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.098,97 excl. BTW
/ stuk
€ 1.329,75 incl. BTW
- Levering doorgaans binnen 9 dagen
