Kegellager Timken 854DC, Buitendiameter: 190.5 mm | Binnendiameter: 92.075 mm | Breedte: 126.997 mm
Kegellager
Zie technische informatieReferenties
Timken:854DC
Rubix:03325055
EAN:0053893096025
Technische samenvatting
| Binnendiameter | 92,075 mm |
|---|---|
| Buitendiameter | 190,5 mm |
| Breedte | 126,997 mm |

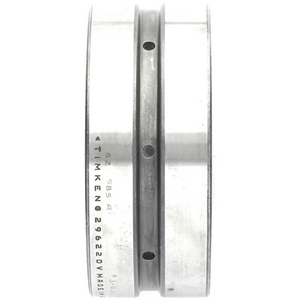

Productdetails : TIMKEN 854 DC CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken taper cup 854DC uit serie 855. Bore 92.075 mm, buitenomtrek 190.5 mm, breedte 126.997 mm; dynamische radiale belasting Cr 797000 N.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 101,6x190,5x190,5 mm |
| Logistiek gewicht | 6285 g |
| Afmeting verpakking (D x B x H) | 196,85x130,302x196,85 mm |
| Binnendiameter | 92,075 mm |
| Buitendiameter | 190,5 mm |
| Breedte | 126,997 mm |
| Type lagerspeling | cn |
| Gewicht | 6,28 kg |
| Serie | 855 |
| Totale breedte lager | 126,997 mm |
| Statische basisbelasting, radiaal - C0r | 630000 N |
| Dynamische basisbelasting, radiaal - Cr | 797000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 4.064,36 excl. BTW
/ stuk
€ 4.917,88 incl. BTW
- Levering doorgaans binnen 9 dagen
