Kegellager Timken JHM522649AC-90KA9, Buitendiameter: 180 mm | Binnendiameter: 110 mm | Breedte: 102.365 mm
Kegellager
Zie technische informatieReferenties
Timken:JHM522649AC-90KA9
Rubix:03327265
EAN:0053893941929
Technische samenvatting
| Binnendiameter | 110 mm |
|---|---|
| Buitendiameter | 180 mm |
| Breedte | 102,365 mm |

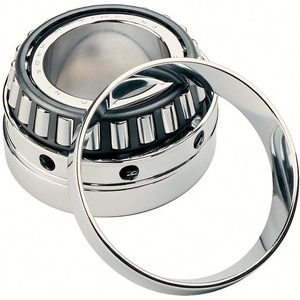

Productdetails : TIMKEN JHM 522649 AC-90KA9 KEGELLAGER ASSY
2TS assemblies are comprised of two single-row bearings with an inner and outer ring spacer. In some applications, a shoulder in the bearing housing replaces the outer ring spacer.
Timken 2TS-IM kegellager-assy JHM522649AC-90KA9 voor indirecte montage. Afmetingen: 110 mm boring, 180 mm buitendiameter en totale breedte 102,365 mm.
Sterke punten
Steel spacers are used to create Bench End Play (BEP) or Preload (BPL) in the bearing assembly. Available with or without spacers. Spacers preset during manufacture.
Toepassingen
Gear reduction units; Industrial machines
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 102,362x180,086x180,086 mm |
| Logistiek gewicht | 9440 g |
| Afmeting verpakking (D x B x H) | 184,15x107,95x184,15 mm |
| Binnendiameter | 110 mm |
| Buitendiameter | 180 mm |
| Breedte | 102,365 mm |
| Type lagerspeling | cn |
| Gewicht | 9,44 kg |
| Serie | 2ts-im |
| Koker | roestvrij staal |
| Totale breedte lager | 102,365 mm |
| Dynamische basisbelasting, radiaal - Cr | 766000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 2.349,70 excl. BTW
/ stuk
€ 2.843,14 incl. BTW
- Levering doorgaans binnen 9 dagen
