Kegellager Timken 3875-90010, Buitendiameter: 85.725 mm | Binnendiameter: 38.1 mm | Breedte: 30.163 mm
Kegellager
Zie technische informatieReferenties
Timken:3875-90010
Rubix:03322415
EAN:0053893134345
Technische samenvatting
| Binnendiameter | 38,1 mm |
|---|---|
| Buitendiameter | 85,725 mm |
| Breedte | 30,163 mm |

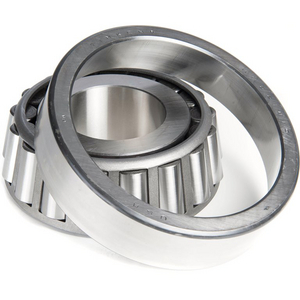

Productdetails : TIMKEN 3875-90010 KEGELLAGER ASSY
Timken’s high-precision tapered roller bearings consist of carefully matched components that offer an added degree of fine-tuning in the bearing setting and adjustment procedure to maximize customer machine productivity. Timken manufactures high-speed designs with a variable preload capability for optimum performance. Timken also manufactures Precision Plus bearings – having an overall radial runout less than a single micron.
Timken kegellager (precision Type TS) in serie 3800, single row. Afmetingen 38,1×85,725×30,163 mm; C0=148000 N en C1=124000 N voor zware radiale belastingen.
Sterke punten
In particular, precision tapered roller bearings feature: Tighter manufacturing specifications resulting in greater rotational accuracy; Reduced tolerances on bore and outside diameter creating improved performance in high speed, high temperature applications; Straight race and/or roller profile designs (versus crowned profile designs) for increased accuracy and rigidity; Controlled machining and assembly processes to ensure that components are matched properly and exact specifications are met; High load-carrying capability compared to other bearing types so that fatigue life is enhanced; The ability to be adjusted during installation so that operating torque, shaft rigidity and operating temperature can be precisely controlled.
Toepassingen
Machine Tool; Printing Press; Rolling Mill
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 30,226x85,852x85,852 mm |
| Logistiek gewicht | 825 g |
| Afmeting verpakking (D x B x H) | 36,576x85,852x85,852 mm |
| Binnendiameter | 38,1 mm |
| Buitendiameter | 85,725 mm |
| Breedte | 30,163 mm |
| Type lagerspeling | cn |
| Gewicht | 0,8 kg |
| Serie | 3800 |
| Koker | staal |
| Totale breedte lager | 30,163 mm |
| Norm | ABMA STANDARD 7 |
| Statische basisbelasting, radiaal - C0r | 148000 N |
| Dynamische basisbelasting, radiaal - Cr | 124000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.000,60 excl. BTW
/ stuk
€ 1.210,73 incl. BTW
- Levering doorgaans binnen 9 dagen
