Kegellager Timken 495AS, Buitendiameter: 133.35 mm | Binnendiameter: 77.788 mm | Breedte: 29.769 mm
Kegellager
Zie technische informatieReferenties
Timken:495AS
Rubix:03323367
EAN:0053893045382
Technische samenvatting
| Binnendiameter | 77,788 mm |
|---|---|
| Buitendiameter | 133,35 mm |
| Breedte | 29,769 mm |

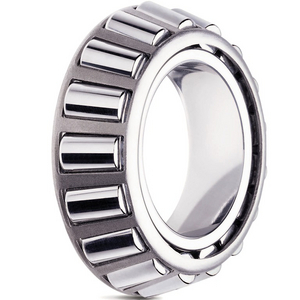

Productdetails : TIMKEN 495 AS CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Timken 495AS kegellagerkegel (Type TS) voor enkelrijige kegellageropstellingen. Boring 77,788 mm, buitendiameter 133,350 mm en hoge statische/dynamische radiale belastingen.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 29,769x108,783x108,783 mm |
| Logistiek gewicht | 1156 g |
| Afmeting verpakking (D x B x H) | 34,544x133,858x133,858 mm |
| Binnendiameter | 77,788 mm |
| Buitendiameter | 133,35 mm |
| Breedte | 29,769 mm |
| Type lagerspeling | cn |
| Gewicht | 4,138 kg |
| Serie | 495 |
| Koker | staal |
| Totale breedte lager | 51,994 mm |
| Norm | TYPE TS |
| Statische basisbelasting, radiaal - C0r | 216000 N |
| Dynamische basisbelasting, radiaal - Cr | 154000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 345,76 excl. BTW
/ stuk
€ 418,37 incl. BTW
- Levering doorgaans binnen 9 dagen
