Kegellager Timken HM120848-90023, Buitendiameter: 165.1 mm | Binnendiameter: 101.6 mm | Breedte: 106.581 mm
Kegellager
Zie technische informatieReferenties
Timken:HM120848-90023
Rubix:03326636
EAN:0053893846729
Technische samenvatting
| Binnendiameter | 101,6 mm |
|---|---|
| Buitendiameter | 165,1 mm |
| Breedte | 106,581 mm |

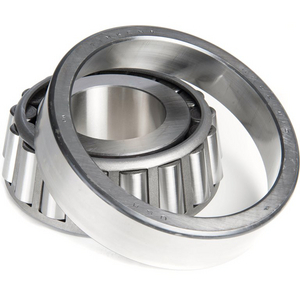

Productdetails : TIMKEN HM 120848-90023 KEGELLAGER ASSY
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
Timken HM120848-90023 kegellagerass’y in cone & cup uitvoering (HM120800). Hoge radiale belastingen voor zware industriële toepassingen.
Sterke punten
Single cone and cup. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 106,324x165,1x165,1 mm |
| Logistiek gewicht | 14710 g |
| Afmeting verpakking (D x B x H) | 177,8x292,1x177,8 mm |
| Binnendiameter | 101,6 mm |
| Buitendiameter | 165,1 mm |
| Breedte | 106,581 mm |
| Type lagerspeling | cn |
| Gewicht | 8,763 kg |
| Serie | hm120800 |
| Koker | staal |
| Totale breedte lager | 114,3 mm |
| Statische basisbelasting, radiaal - C0r | 431000 N |
| Dynamische basisbelasting, radiaal - Cr | 470000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 3.600,69 excl. BTW
/ stuk
€ 4.356,83 incl. BTW
- Levering doorgaans binnen 9 dagen
