Kegellager Timken L610510D, Buitendiameter: 94.458 mm | Binnendiameter: 63.5 mm | Breedte: 19.05 mm
Kegellager
Zie technische informatieReferenties
Timken:L610510D
Rubix:03327940
EAN:0053893651422
Technische samenvatting
| Binnendiameter | 63,5 mm |
|---|---|
| Buitendiameter | 94,458 mm |
| Breedte | 19,05 mm |

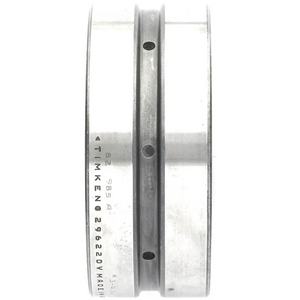

Productdetails : TIMKEN L 610510 D CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken l 610510 d cup
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 35,052x94,488x94,488 mm |
| Logistiek gewicht | 361 g |
| Afmeting verpakking (D x B x H) | 45,466x100,584x100,584 mm |
| Binnendiameter | 63,5 mm |
| Buitendiameter | 94,458 mm |
| Breedte | 19,05 mm |
| Type lagerspeling | cn |
| Gewicht | 2,102 kg |
| Serie | l610500 |
| Koker | staal |
| Totale breedte lager | 42,857 mm |
| Dynamische basisbelasting, radiaal - Cr | 117000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 731,84 excl. BTW
/ stuk
€ 885,53 incl. BTW
- Levering doorgaans binnen 9 dagen
