Kegellager Timken 46790A-90202, Buitendiameter: 225.425 mm | Binnendiameter: 165.1 mm | Breedte: 85.725 mm
Kegellager
Zie technische informatieReferenties
Timken:46790A-90202
Rubix:03322965
EAN:0053893301860
Technische samenvatting
| Binnendiameter | 165,1 mm |
|---|---|
| Buitendiameter | 225,425 mm |
| Breedte | 85,725 mm |

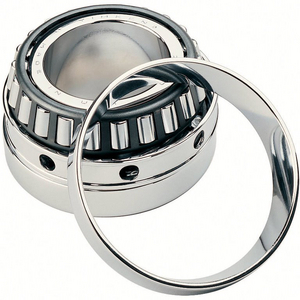

Productdetails : TIMKEN 46790 A-90202 KEGELLAGER ASSY
2TS assemblies are comprised of two single-row bearings with an inner and outer ring spacer. In some applications, a shoulder in the bearing housing replaces the outer ring spacer.
Timken kegellager-assemblage 46790A-90202 (TDO) met 165,1 mm boring en 225,425 mm buitendiameter. Breedte 85,725 mm; statische radiale belasting 635000 N en dynamische radiale belasting 528000 N.
Sterke punten
Steel spacers are used to create Bench End Play (BEP) or Preload (BPL) in the bearing assembly. Available with or without spacers. Spacers preset during manufacture.
Toepassingen
Gear reduction units; Industrial machines
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistiek gewicht | 9849 g |
| Afmeting verpakking (D x B x H) | 234,95x88,9x234,95 mm |
| Binnendiameter | 165,1 mm |
| Buitendiameter | 225,425 mm |
| Breedte | 85,725 mm |
| Type lagerspeling | cn |
| Gewicht | 9,37 kg |
| Serie | 46700 |
| Koker | staal |
| Totale breedte lager | 85,725 mm |
| Statische basisbelasting, radiaal - C0r | 635000 N |
| Dynamische basisbelasting, radiaal - Cr | 528000 N |
| 225,425 mm | |
| 225,425 mm |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 22.050,94 excl. BTW
/ stuk
€ 26.681,64 incl. BTW
- Levering doorgaans binnen 9 dagen
