Kegellager Timken 55452D, Buitendiameter: 114.981 mm | Binnendiameter: 52.388 mm | Breedte: 65.082 mm
Kegellager
Zie technische informatieReferenties
Timken:55452D
Rubix:03323643
EAN:0053893335421
Technische samenvatting
| Binnendiameter | 52,388 mm |
|---|---|
| Buitendiameter | 114,981 mm |
| Breedte | 65,082 mm |

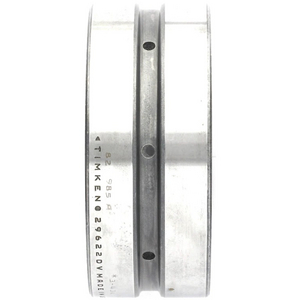

Productdetails : TIMKEN 55452 D CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken 55452D cup (TDO) voor kegelrollagers. Boring 52,388 mm, buitendiameter 114,981 mm, breedte 65,082 mm. Statisch 161000 N; dynamisch 263000 N.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 44,45x115,062x115,062 mm |
| Logistiek gewicht | 1157 g |
| Afmeting verpakking (D x B x H) | 62,0776x123,9012x123,9012 mm |
| Binnendiameter | 52,388 mm |
| Buitendiameter | 114,981 mm |
| Breedte | 65,082 mm |
| Type lagerspeling | cn |
| Gewicht | 2,789 kg |
| Serie | 55000c-serie |
| Totale breedte lager | 65,082 mm |
| Statische basisbelasting, radiaal - C0r | 161000 N |
| Dynamische basisbelasting, radiaal - Cr | 263000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 367,52 excl. BTW
/ stuk
€ 444,70 incl. BTW
- Levering doorgaans binnen 9 dagen
