Kegellager Timken HH221449NW, Buitendiameter: 190.5 mm | Binnendiameter: 101.6 mm | Breedte: 68.262 mm
Kegellager
Zie technische informatieReferenties
Timken:HH221449NW
Rubix:03326480
EAN:0053893516370
Technische samenvatting
| Binnendiameter | 101,6 mm |
|---|---|
| Buitendiameter | 190,5 mm |
| Breedte | 68,262 mm |

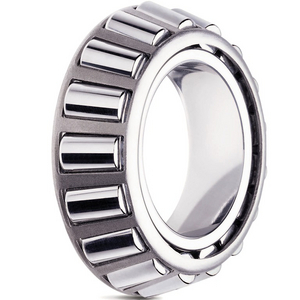

Productdetails : TIMKEN HH 221449 NW CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Timken HH221449NW kegelrollenlagerkegel voor zware, gecombineerde belasting. Afmetingen: 101,6 mm boring, 190,5 mm buitendiameter, 68,262 mm breedte.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 68,326x140,208x140,208 mm |
| Logistiek gewicht | 5362 g |
| Afmeting verpakking (D x B x H) | 77,724x174,752x174,752 mm |
| Binnendiameter | 101,6 mm |
| Buitendiameter | 190,5 mm |
| Breedte | 68,262 mm |
| Type lagerspeling | cn |
| Gewicht | 10,65 kg |
| Serie | hh221400 |
| Materiaal | staal |
| Koker | staal |
| Referentietoerental | 1900 rpm |
| Grenstoerental | 2600 rpm |
| Totale breedte lager | 136,652 mm |
| Norm | ISO NORMAL CLASS |
| Statische basisbelasting, radiaal - C0r | 520000 N |
| Dynamische basisbelasting, radiaal - Cr | 480000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 2.880,88 excl. BTW
/ stuk
€ 3.485,86 incl. BTW
- Levering doorgaans binnen 9 dagen
