Referenties
Timken:UKP210
Rubix:A0378717
EAN:0013992171245
Technische samenvatting
| Binnendiameter | 45 mm |
|---|---|
| Bevestigingsafstand tussen de gaten | 159 mm |
| Totale breedte lager | 55 mm |
Documenten

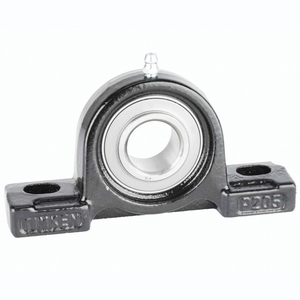

Productdetails : TIMKEN UKP 210 KOGELLAGERBLOK
Sterke punten
•UKP pillow blocks are suggested for industrial applications where normal loads are encountered
Compact, one-piece housing with two-bolt mounting can be installed in any position and makes bearing replacement easy
These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment
Timken UKP series housed units feature the Timken tapered bore (UK) bearing insert for use with adapter sleeve
Bearing pre lubricated and ready for immediate installation Grease fitting supplied for relubrication
Grease fitting supplied for relubrication
The bonded seal design is well-suited for applications involving wet or dirty environments
Bolt-hole spacing and base-to-center height dimensions are interchangeable with competitive units
Housing designed for ease of bearing replacement
Compact, one-piece housing with two-bolt mounting can be installed in any position and makes bearing replacement easy
These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment
Timken UKP series housed units feature the Timken tapered bore (UK) bearing insert for use with adapter sleeve
Bearing pre lubricated and ready for immediate installation Grease fitting supplied for relubrication
Grease fitting supplied for relubrication
The bonded seal design is well-suited for applications involving wet or dirty environments
Bolt-hole spacing and base-to-center height dimensions are interchangeable with competitive units
Housing designed for ease of bearing replacement
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Binnendiameter | 45 mm |
| Bevestigingsafstand tussen de gaten | 159 mm |
| Totale breedte lager | 55 mm |
| Klemmen | 22 mm |
| Diameter bevestigingsgaten | 20 mm |
| Hoogte | 113 mm |
| Lengte | 206 mm |
| Afdichting | anvulkanisierte dichtung |
| Serie | ukp |
| Gewicht | 6,9 kg |
| Aantal gaten | 2 |
| Statische basisbelasting, radiaal - C0r | 23300 N |
| Dynamische basisbelasting, radiaal - Cr | 35100 N |
| Breedte | 60 mm |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 97,20 excl. BTW
/ stuk
€ 117,61 incl. BTW
- op voorraad: binnen 24 uur verzonden
