Kegellager Timken 17116D, Buitendiameter: 34.925 mm | Binnendiameter: 30.163 mm | Breedte: 34.925 mm
Kegellager
Zie technische informatieReferenties
Timken:17116D
Rubix:03320995
Fabrikant:100040020
EAN:0053893192864
Technische samenvatting
| Binnendiameter | 30,163 mm |
|---|---|
| Buitendiameter | 34,925 mm |
| Breedte | 34,925 mm |

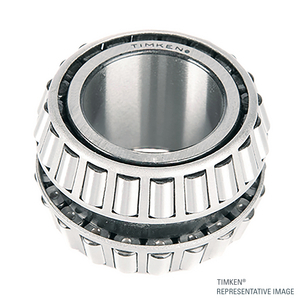

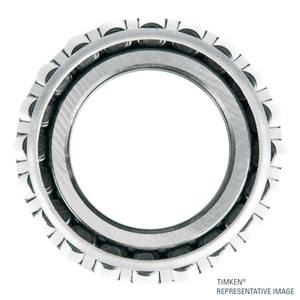

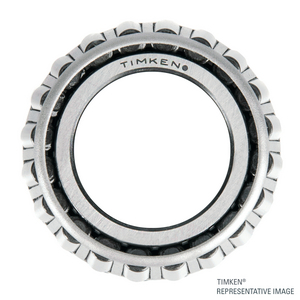

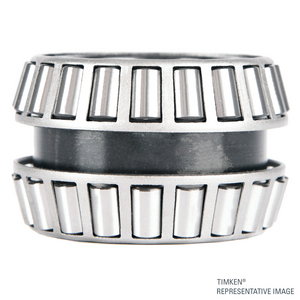

Productdetails : TIMKEN 17116 D CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Timken 17116D kegellagerkegel met CN speling uit serie 17000. Bore 30,163 mm, breedte 34,925 mm en hoge radiale draagkracht.
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 35,052x44,704x44,704 mm |
| Logistiek gewicht | 285 g |
| Afmeting verpakking (D x B x H) | 66,802x66,802x44,45 mm |
| Gewicht verpakking | 285,3 g |
| Binnendiameter | 30,163 mm |
| Buitendiameter | 34,925 mm |
| Breedte | 34,925 mm |
| Type lagerspeling | cn |
| Gewicht | 0,5 kg |
| Serie | 17000 |
| Koker | staal |
| Totale breedte lager | 33,797 mm |
| Statische basisbelasting, radiaal - C0r | 44100 N |
| Dynamische basisbelasting, radiaal - Cr | 75300 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 506,70 excl. BTW
/ stuk
€ 613,11 incl. BTW
- Levering doorgaans binnen 9 dagen
