Kegellager Timken 385-90200, Buitendiameter: 100 mm | Binnendiameter: 55.001 mm | Breedte: 49.197 mm
Kegellager
Zie technische informatieReferenties
Timken:385-90200
Rubix:03322385
EAN:0053893019758
Technische samenvatting
| Binnendiameter | 55,001 mm |
|---|---|
| Buitendiameter | 100 mm |
| Breedte | 49,197 mm |

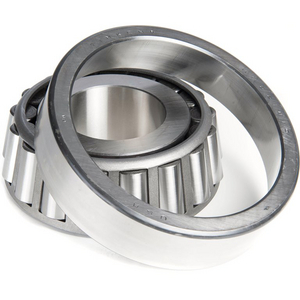

Productdetails : TIMKEN 385-90200 KEGELLAGER ASSY
Timken’s high-precision tapered roller bearings consist of carefully matched components that offer an added degree of fine-tuning in the bearing setting and adjustment procedure to maximize customer machine productivity. Timken manufactures high-speed designs with a variable preload capability for optimum performance. Timken also manufactures Precision Plus bearings – having an overall radial runout less than a single micron.
Timken 385-90200 kegellager assy met boring 55,001 mm, buitendiameter 100 mm en breedte 49,197 mm. Dubbelrij uitvoering voor betrouwbare lastopname in zware toepassingen.
Sterke punten
In particular, precision tapered roller bearings feature: Tighter manufacturing specifications resulting in greater rotational accuracy; Reduced tolerances on bore and outside diameter creating improved performance in high speed, high temperature applications; Straight race and/or roller profile designs (versus crowned profile designs) for increased accuracy and rigidity; Controlled machining and assembly processes to ensure that components are matched properly and exact specifications are met; High load-carrying capability compared to other bearing types so that fatigue life is enhanced; The ability to be adjusted during installation so that operating torque, shaft rigidity and operating temperature can be precisely controlled.
Toepassingen
Machine Tool; Printing Press; Rolling Mill
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 49,276x100,076x100,076 mm |
| Logistiek gewicht | 1506 g |
| Afmeting verpakking (D x B x H) | 62,0776x123,9012x123,9012 mm |
| Binnendiameter | 55,001 mm |
| Buitendiameter | 100 mm |
| Breedte | 49,197 mm |
| Type lagerspeling | cn |
| Gewicht | 1,476 kg |
| Serie | 385 |
| Totale breedte lager | 49,197 mm |
| Statische basisbelasting, radiaal - C0r | 107000 N |
| Dynamische basisbelasting, radiaal - Cr | 28000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.486,37 excl. BTW
/ stuk
€ 1.798,51 incl. BTW
- Levering doorgaans binnen 9 dagen
