Kegellager Timken 5335V, Buitendiameter: 103.188 mm | Breedte: 36.513 mm
Kegellager
Zie technische informatieReferenties
Timken:5335V
Rubix:03323574
EAN:0053893142296
Technische samenvatting
| Buitendiameter | 103,188 mm |
|---|---|
| Breedte | 36,513 mm |
| Type lagerspeling | cn |

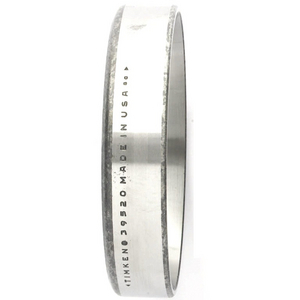

Productdetails : TIMKEN 5335 V CUP
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Timken 5335V lagercup (single cup, kegellager). Buitendiameter 103,188 mm, ringbreedte 36,513 mm, totale breedte 43,657 mm en gewicht 1,70 kg.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 36,513x103,188x103,188 mm |
| Logistiek gewicht | 630 g |
| Afmeting verpakking (D x B x H) | 39,7256x116,0272x116,0272 mm |
| Buitendiameter | 103,188 mm |
| Breedte | 36,513 mm |
| Type lagerspeling | cn |
| Gewicht | 1,7 kg |
| Serie | 5300 |
| Materiaal | melt steel (vacuum melt steel) |
| Koker | staal |
| Totale breedte lager | 43,657 mm |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 310,70 excl. BTW
/ stuk
€ 375,95 incl. BTW
- Levering doorgaans binnen 9 dagen
